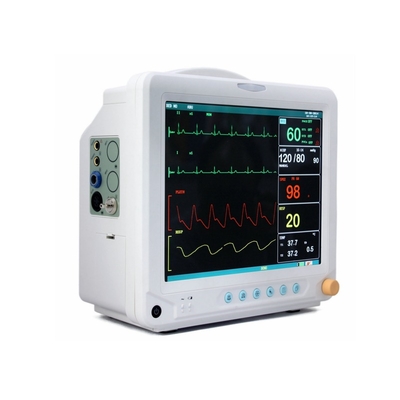

Hospital Medical Equipment Patient Monitor 12.1 Inch Touch Screen Optional Color LED Monitor YJ-F5

1 Unit
MOQ
$525.00(1 - 9 Units) $500.00(>=10 Units)
Price
Hospital Medical Equipment Patient Monitor 12.1 Inch Touch Screen Optional Color LED Monitor YJ-F5
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YJ-F5
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online Technical Support
Material: Metal, Plastic
Shelf Life: 1years
Quality Certification: Ce
Instrument Classification: Class II
Safety Standard: EN 149 -2001+A1-2009
Product Name: Patient Monitor
Model: YJ-F5
Application: Hospital
Certificate: CE ISO
Display: 12.1 Inches LED
Printer: Built-in Thermal Printer
Power Supply: AC100~240V, 50/60HZ, Power≤60W
MOQ: 1
Basic Infomation
Certification: ce, CE ISO
Model Number: YJ-F5, YJ-F5
Payment & Shipping Terms
Product Description
Product Description
Specification
item
value
Place of Origin
China
Henan
Brand Name
FORERMED
Model Number
YJ-F5
Power Source
Electric
Warranty
1 Year
After-sale Service
Online technical support
Material
metal, Plastic
Shelf Life
1years
Quality Certification
ce
Instrument classification
Class II
Safety standard
EN 149 -2001+A1-2009
Product name
Patient Monitor
Model
YJ-F5
Application
Hospital
Certificate
CE ISO
Display
12.1 inches LED
Printer
Built-in thermal printer
Power Supply
AC100~240V, 50/60HZ, Power≤60W

The YJ-F5 patient monitor is designed to match the pace and unique needs of adult, pediatric, and neonatal intensive care; anesthesia and peri-operative care; OR and cardiac care environments.
An optional Nellcor /Masimo SpO2 module enable accurate measurement in NICU.

Features

Body 12.1 inch high-brightness TFT LED Support display maximum 8 waveforms Support 6 channel ECG waveform display simultaneously Optional touch screen
Stroage Support storage of 168 hours trend table and graph review 100 minutes waveform review 500 groups NIBP review 100 hours of parameter alarm events review and associated parameters

Printer Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)
Central System Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.


Alarm Three-level acousto-optic alarm Sensor-off alarm Paper out alarm Support alarm review Support alarm pause

Operating System Multi-display mode to meet different clinical requirement, including standard interface, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface.

NIBP self-test mode: including overpressure test, static pressure test and air leakage test.
13 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
Drug calculation and titration table Support multi-language display Support online software upgrading by net

Performance Specifications

Dimension and Weight - Dimension: 310mm*290mm*150mm - Weight: 3.4kg（excluding accessories）
Power Supply - Voltage: AC100～240V, 50/60HZ, Power≤60W
Display - 12.1" color TFT LED - Resolution: 800*600 pixels
Battery (Pluggable) - Type: Rechargeable lithium battery 14.8V/2200mAh - Charge Cycle: ≥500 times - Working time: 2 hours (optional larger battery for 4-5 hours)
Recorder (Option) - Method: Thermal printer - Paper width: 50 mm (1.97 in) - Printing speed: 25/ 50 mm/s - Trace: Max. 2 tracks - Recording way: Real-time Recording, Review Printing, Alarm Recording
Alarm - Level: Low, medium and high - Indication: Auditory and visual - Alarm volume adjustable - Alarm pause time: 1min, 2min - Parameter alarm type: Latch/ Unlatch
Input Device - Touch screen (option) - Knob (Standard) - Keypad input (Standard)

Respiration - Method: Impedance between RA-LL, RA-LA - Gain: ×0.25, ×0.50, ×1, ×2, - Respiration Rate: 0bpm, 0 ~ 150 BrPM - Sweep speed: 6.25 mm/s, 12.5 mm/s, 25mm/s - Resolution: 1 BrPM - Accuracy: ±2 bpm or ±2%, whichever is greater - Apnea Alarm: 10 ~ 40 s
NIBP - Method: Oscillometric - Measure mode: Manual, Auto, STAT - Measure Interval in AUTO Mode 1~480 min - STAT mode cycle time: Keep 5 minutes, at 5 seconds interval - Measure and Alarm Range: Adult: SYS: 40 ~ 270 mmHg DIA: 10 ~ 215mmHg MEAN: 20 ~ 235 mmHg Pediatric: SYS: 40 ~ 200 mmHg DIA: 10 ~ 150mmHg MEAN: 20 ~ 165 mmHg Neonate: SYS: 40 ~ 135 mmHg DIA: 10 ~ 100mmHg MEAN: 20 ~ 110 mmHg - Static pressure accuracy: ±3mmHg - Resolution: 1mmHg - Accuracy: Maximum Mean error ±5mmHg Maximum Standard deviation ≤8mmHg - Over pressure Protection: Dual protection via software & hardware

SpO2 (Analog Technic) - Measurement Range: 0 ~ 100 % - Resolution: 1 % - Accuracy: ±2% (70% ~ 100%) Unspecified (0 ~ 69%)
Pulse Rate - Measuring and Alarm Range: 20~300bpm - Accuracy: ±3% - Resolution: 1bpm
Nellcor-SpO2 (Option) - Measurement Range: 0 ~ 100 % - Resolution: 1 % - Accuracy: 70% ~ 100%, ±2 % (adult) 70% ~ 100%, ±3 % (Neonate) 70% ~ 100%, ±2 % (Low Perfusion) 0% ~ 69%, unspecified
Pulse Rate - Measurement range: 20 ~ 300 bpm - Resolution: 1bpm - Accuracy: ±3 bpm (20 ~ 250 bpm) Unspecified (251~300 bpm)

IBP (Option) - Max Channel: 2 - Measurement way: Thermal resistance way - Press Sensor: Sensitivity 5 uV/V/mmHg, ±2% Impedance 300 to 3000Ω - Resolution: 1 mmHg - Unit: mmKg, kPa, cmH2O - Transducer sites: Arterial Pressure (ART) Pulmonary Arterial (PA) Left Arterial (LAP) Right Arterial (RAP) Central Venous Pressure (CVP) Intracranial Pressure (ICP) P1/ P2 - Measuring and alarm range: ART 0 ~ +350mmHg PA -10 ~ +120 mmHg CVP/ RAP/ LAP/ ICP -10 ~ +40 mmHg P1/ P2 -50 ~ +350mmHg - Accuracy: Static: ±1mmHg or ±2%, whichever is greater (exclusive of transducer) ±4mmHg or ±4%, whichever is greater (inclusive of transducer) Dynamic: ±4mmHg or ±4%, whichever is greater
* Specifications subject to change without prior notice
System Output & Extensible
Interface - Ethernet Network: 1 standard RJ45 socket
Operating Environment - Temperature: 5 ~ 40 ℃ - Humidity: 15% ~ 80% (non-condensing) - Atmosphere pressure: 86 KPa ~ 110 KPa
Transportation and Storage
Environment - Temperature: -20～50 ℃ - Humidity: 10%～90% (non-condensing) - Atmosphere pressure: 86 KPa ~ 110 KPa
Safety - IEC60601-1 Approved, CE marking according to MDD93/42/EEC - With reference to RoHS Directive 2011/65/EU recasting
Trend & Reviewing - Trend: 168 hours - NIBP measurement reviewing: 500 groups - Waveform review: 100 minutes - Alarm event: 100hours of parameter alarms events and associated parameter

ECG - Lead mode: 3/5 Leads, I, II, III or I, II, III, AVR, AVL, AVF, V - Gain: 2.5mm/mV(×0.25), 5.0mm/mV(×0.5), 10mm/mV (×1), 20mm/mV (×2), - Sweep speed: 12.5 mm/s, 25 mm/s, 50 mm/s - ECG signal range: ±6 mV - Accuracy: ±1bpm/ ±1%, whichever is greater - Resolution: 1 bpm - Leakage Current < 10 μA - Input impedance: > 5.0Mohm - CMRR: Diagnostic Mode >90 dB; Monitor Mode>100dB Surgery Mode>100dB - Baseline Recovery: ≤ 5s after defibrillation (Monitor or Surgery mode) - Bandwidth: Surgery 1 ~ 20Hz Monitor 0.5 ~ 40 Hz Diagnostic 0.05 ~ 130 Hz - Against electrosurgical interference and defibrillation - Indication of Electrode Separation: Every electrode (exclusive of RL)
Heart Rate - Measure range: Adult: 0bpm; 15 ~ 300 bpm Neo/Ped: 0bpm; 15 ~ 350 bpm - Resolution: 1 bpm - Accuracy: ± 1% or ± 1bpm, whichever is greater ST Measurement - Range: -2.0 ~ +2.0 mV - Accuracy: -0.8mV～+0.8mV: ±0.02mV or ±10%, whichever is greater - Other range: unspecified

Temperature - Technique: Thermistor probe (2.25K) - Channel: Dual-channel, provide T1; T2; ΔT - Measuring and Alarm Range: 0.0 ℃~ 50 ℃ (32℉~ 122℉) - Unit: Celsius (℃), Fahrenheit ( ℉) - Resolution: 0.1℃or 1℉ - Accuracy: ±0.1℃(exclusive probe)

Masimo SpO2 (Option) - - Measurement Range: 0 ~ 100 % - - Resolution: 1 % - Accuracy: 70% ~ 100%, ±2 % (adult/ pediatric, non-motion conditions) 70% ~ 100%, ±3 % (neonate, non-motion conditions) 70% ~ 100%, ±3 % (motion conditions) 0% ~ 69% unspecified
Pulse Rate - Measurement range: 25 ~ 240 bpm - Resolution: 1bpm - Accuracy: ±3 bpm (non-motion condition)
EtCO2 (Mainstream/ Sidestream) (Option) - Measure method: Non-dispersive infrared (NDIR) - Measure Range:
0 ~19.7% (0 ~ 150 mmHg) 0 ~ 20 kPa - Resolution: 0.1 mmHg
- CO2 Accuracy: 0 ~ 40 mmHg, ±2 mmHg 41 ~ 70 mmHg, ±5% of reading 71 ~ 100 mmHg, ±8% of reading 101~ 150 mmHg, ±10% of reading at 760 mmHg, ambient temperature of 25℃)
- Respiratory Rate:
Range: 3 ~150 BrPM Accuracy: ±1 bpm

EtCO2 (Micro-stream) (Option) - Measure method: Non-dispersive infrared (NDIR) - Measure Range: 0 ~19.7% (0 ~150 mmHg) 0 ~ 20 kPa - Sample Rate: 50 mL/min ±10mL/min
- Resolution:
0.1 mmHg (0 ~ 50 mmHg) 0.25 mmHg (50 ~ 114 mmHg)
- CO2 Accuracy: 0 ~ 40 mmHg, ±2 mmHg 41 ~ 70 mmHg, ±5% of reading 71 ~ 100 mmHg, ±8% of reading 101~ 150 mmHg, ±10% of reading at 760 mmHg, ambient temperature of 35℃)
- Respiratory Rate: Range: 3 ~120 BrPM Accuracy: ±1 bpm
